Improvements based on XPS Sport V2
Hardware:
. Is upgraded from 95A to 100A ampere spec and and high grading FET to low the hardware internal resistance with more output power and lower the speed control working temperature
. Support Ch3/Ch4 Aux Input signal to control different item function values (this parameter can be set from LCD card directly)
. BEC: 6V/7.4V selection/max ~5A (this parameter can be set from LCD card directly)
. Same pcb layout design with Radon Pro V4 with better stability and reliablility
Software:
. Is upgraded to Radon Pro V4 speed control firmware for default factory setup
. Compatible with Radon series speed control firmware
Specs:
. Controls: Forward/Brake/Reverse
. Input Voltage: 2S-3S lipo
. BEC: 6V/7.4V selection/max ~5A
. Motor Limit: 6.5T or over
. Max current: ~100A per phase
. Size: ~41x32x18mm (without fan installed)
. Weight: ~42g (not include wiring and fan)

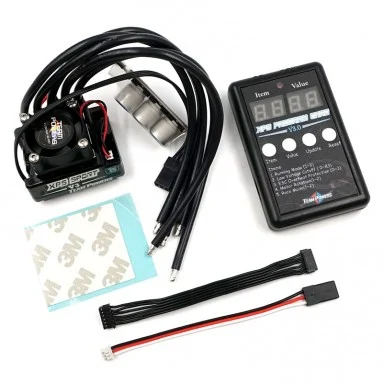

. Come with XPS V3 LED card or it can be used with Radon LCD card(need to buy separately)
