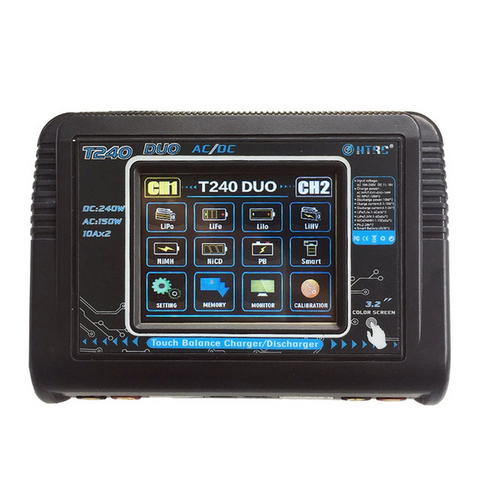

HTRC T240 DUO AC 150W /DC 240W Touch screen Dual Channel 10A RC Balance Charger discharger for LiPo LiHV LiFe Lilon NiCd NiMh Pb battery
T240 is a new design dual balance charger by HTRC,which can charge two different kinds of batteries simultaneously.Multi-function,high power,Utilizing 3.2 inch color LCD Toch screen display,easy operation,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.
It can support power distribution in AC mode,total power 150W (CH1+CH2=150Watt). and in DC mode, works in 2 * 120W. Max charge current can reach 10A each port in both AC and DC mode.
Features:
*Compact touch screen charger, easy operation.
*Twin-channel,charge two different kinds of batteries simultaneously.
*Practical for variety of batteries.
*Automatic identification of Li-Po batteries cells counts
*Built in cool fan for easy heat dissipation
*Graph display of charging status
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-function:
-Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell's  voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell's resistance.(does not support 1s battery)
-Calibration: cell voltage monitoring and calibration.(caliration function for 6s battery only)
-Smart battery:Smart battery I,II,III,and Digital DC Power.(Need optional DJI Charging cable)
*Data storage and loading
*Re-peak and cycling of NiMH/NiCD battery.
*Maximum Safety:Automatic charge current limit,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Built-In PFC
*Firmware update.
Specification:
Model No.:HT-0099
Input: AC 100-240V / DC 11-18V
Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
Discharge power:10W*2
Charge current range:0.1-10A *2
Discharge current range:0.1-2A*2
Lilon/LiPo/LiFe/LiHV cell count :1-6cells*2
NiCd/NiMH battery cell count:1-15cells*2
PB Battery voltage:2-20V*2
Smart battery:I/II/III*2
Current drain for balancing:500mA/cell
Net Weight:0.48kg
Dimension:145*105*64mm
Gross weight:0.85kg
Package size:215*155*75mm
Package list:
1x T240 charger
2x Charge cable banana plug to T-Plug
2x Extension charge cable T-Plug to XT60
2x balance board with pin cord
1x AC Cord (US EU UK AU optional)
1x DC Cord
1x User's Manual
