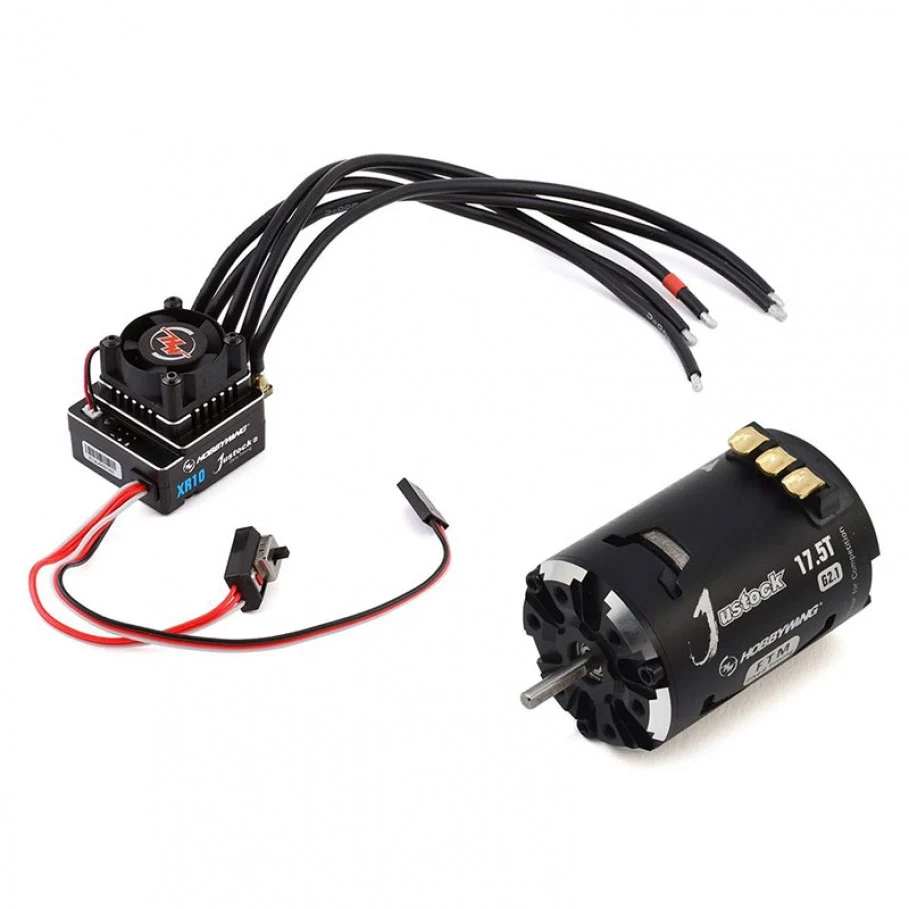

Hobbywing XR10 Justock G3 Sensored Brushless ESC w/ 17.5T G2.1 Motor Combo

Hobbywing XR10 Justock G3 Sensored Brushless ESC w/ 17.5T G2.1 Motor Combo

  • Sale
  • $195.00
Tax included.
  • SKU : 00109954

    • The Hobbywing XR10 Justock G3 Sensored Brushless ESC/SD G2.1 Motor Combo has been designed with fixed, 0°, timing for spec class racing. The included SD G2.1 motor is an ideal stock motor for both 1/10 and 1/12 on and off-road racing. These two components paired together make for an ideal choice for beginners and experts alike.


    Feature:


    • Built-in polarity protection. The XR10 Justock has integrated MOSFET''s that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system

    • Programmable via OTA Bluetooth module or 3in1 program box

    • Built-in capacitor module eliminates the need for external capacitors and unwanted space

    • RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)

    • Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing

    • Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V

    • Calibration or preforming a factory-reset can be achieved by using this SET button. Simple and easy to use

    • Supports both CCW (counterclockwise) and CW (clockwise) motor directions

    • Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection

    • Supports ESC firmware upgrades

    • User-friendly and convenient for set-up

    • Use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability

    • Built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand

    • Silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor

    • Detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency

    • This Justock motor is applicable to various 1/10th, 1/12th on-road Stock Spec Racing, ICC, IOCC, USVTA, TOUR, Oval racing. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice

    • The motor design is in compliance with IFMAR, and ROAR specifications


    Specification:


    ESC:

    • Continuous Current: 60A

    • Burst Current: 380A

    • Battery: 2S Lipo (Only 2S)

    • Built-in BEC: 6V/7.4V @ 4A(Switch-mode)

    • ESC programming: Independent programming port

    • Motor Supported: Sensor and sensorless brushless motor

    • Motor Limit: 10.5T, or greater, 3650 Motor

    • Application: 1/10, 1/12 On-road and Off-road

    • Cooling Fan: Powered by BEC

    • Size: 40.9x33.9x32.1mm (LxWxH)

    • Weight: 75.4g (Including weight of wire)


    Motor:

    • Scale: 1/10, 1/12

    • Brushless: Yes

    • Sensored: Yes

    • Pole Count: 2

    • KV Rating: 2450

    • LiPo Cells: 2-3S

    • No-Load Current(A): 3.5

    • Outer Diameter: 35.9mm (1.413")

    • Length: 52.5mm (2.067")

    • Shaft Diameter: 3.17mm (0.125")

    • Weight: 176g (6.21oz)

    • Timing: Fixed


    Include:


    • Hobbywing XR10 Justock G3 Sensored Brushless ESC w/ 17.5T G2.1 Motor Combo (1 set)
