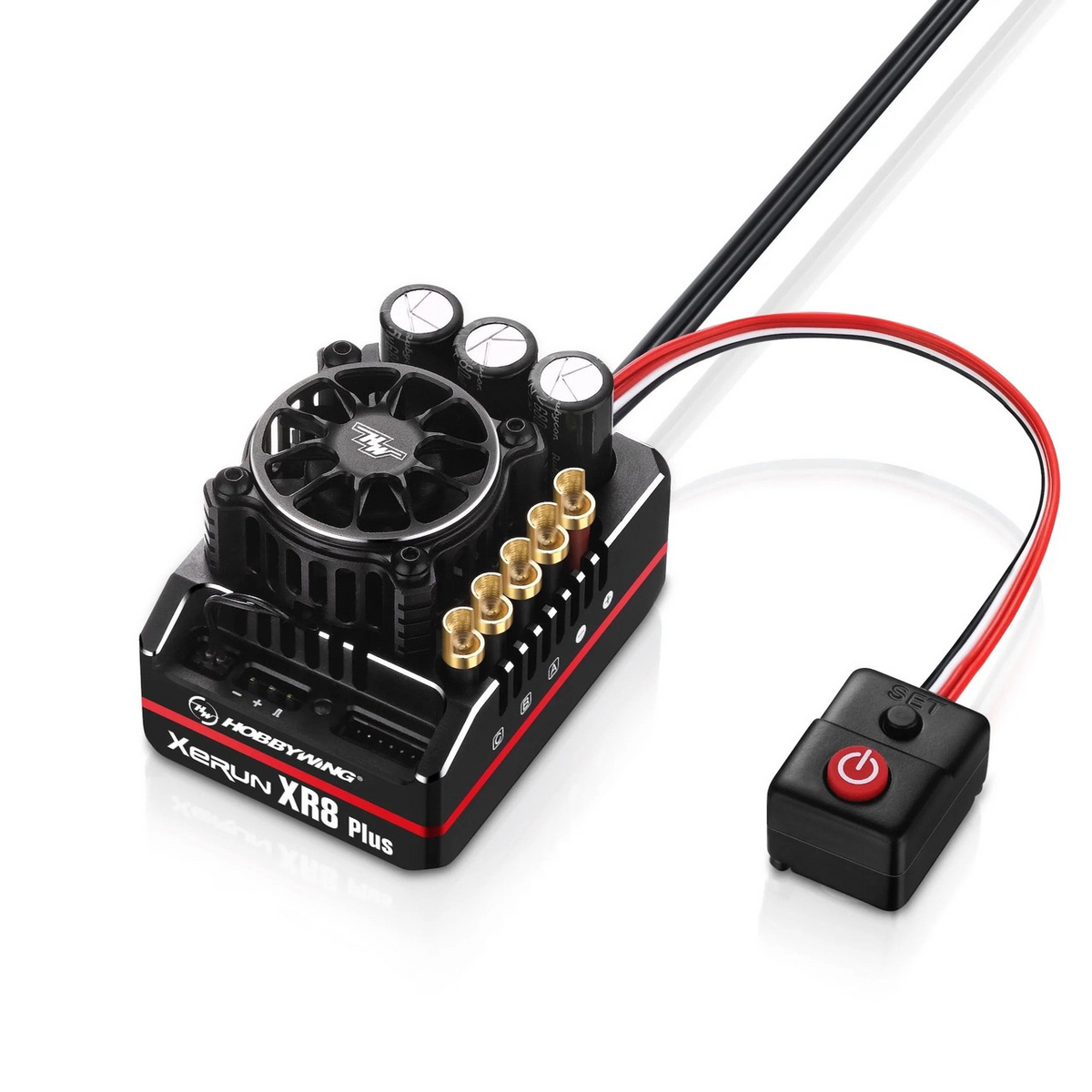

The Hobbywing Xerun XR8 Plus G2S 1/8 Competition Sensored Brushless ESC is the next level in 1/8 competition ESC's. Advancements have been made allowing this ESC to support 48° of boost and turbo timing. When combining this ESC with an optional 4268/4274 G3 motor, the maximum speed can be promoted by 50%. For added protection, this ESC is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform.
NOTE: Use appropriate settings provided by the factory or team drivers. Check operating temperature in order to maximize your electronics. The wrong settings may damage the ESC or motor.
Features:
Efficient heat dissipation system with lower temperature rise
Durable frameless fan
Internal Reverse Polarity Protection Circuit
RPM speed limit function
Easy Obtain Running Status with Real-time Data Recording Function
Multiple Programmable Items
Capacitor Thermal Protection
Super Internal BEC
Excellent dustproof performance
Ultra-soft 11AWG silicone wire
Customized solder tabs, easy to solder
Specifications:
ESC:
Scale: 1/8th
Waterproof: No
Continuous/Peak ESC Current: 200A/1080A
Input Voltage: 2-6S Lipo
BEC Output: 6-8.4V Adjustable,
Continuous/Peak BEC Current: 6A/15A(Switch-mode)
ESC Programing: SET Button on ESC/LCD Program Box/OTA Programmer
Firmware Upgrade: Supported
Size: 56.1mmx42.1mmx38.5mm
Weight: 122g(w/wires)
Applications: SL BL Motors/SD BL Motors
Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
KV Rating/T Count: 4S LiPo: 4268/4274 3000KV - 6S LiPo: 4274 2400KV
Fan:
Size: 30x30x10mm
Voltage Range: 5-8.4V
