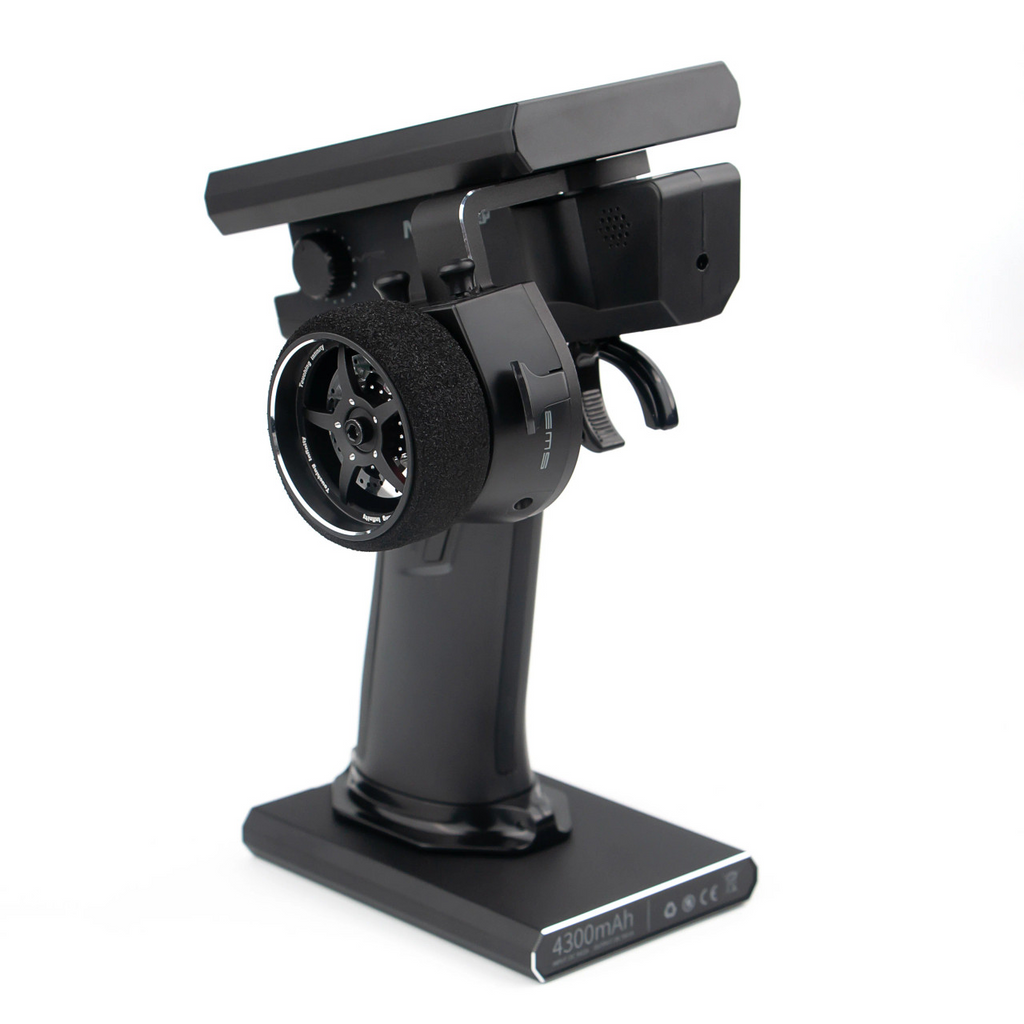

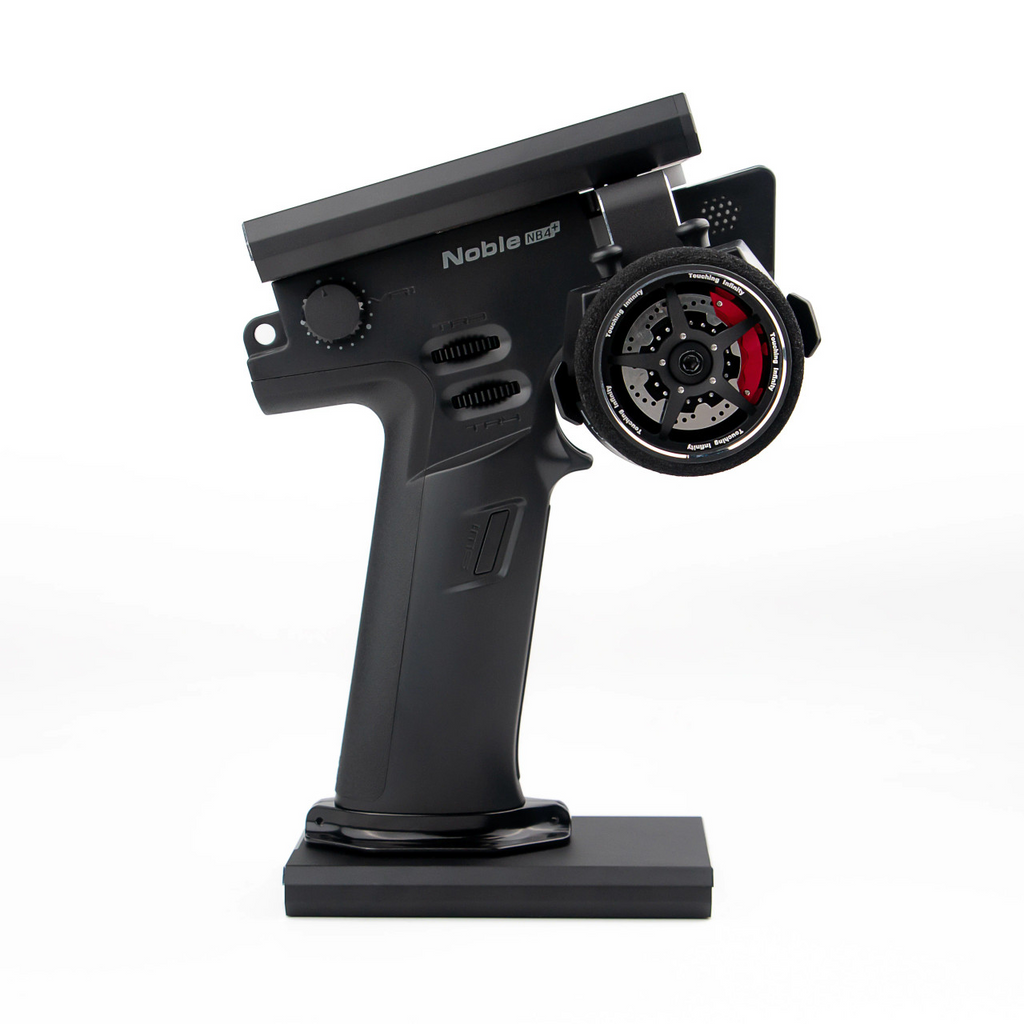

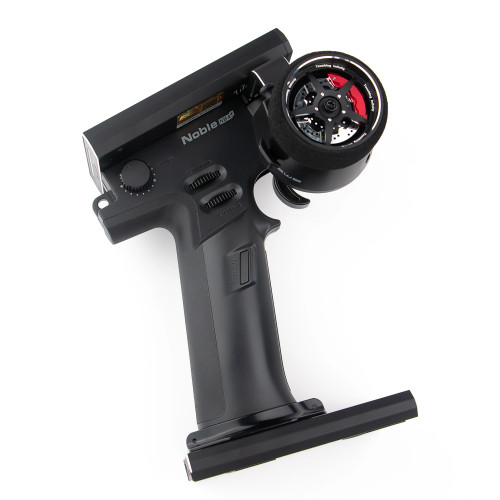

FLYSKY Noble NB4+ Surface Radio W/ Receiver FGR4B
FLYSKY Noble NB4+ Surface Radio W/ Receiver FGR4B
FLYSKY Noble NB4+ Surface Radio W/ Receiver FGR4B
FLYSKY Noble NB4+ Surface Radio W/ Receiver FGR4B
FLYSKY Noble NB4+ Surface Radio W/ Receiver FGR4B
FLYSKY Noble NB4+ Surface Radio W/ Receiver FGR4B

FLYSKY Noble NB4+ Surface Radio W/ Receiver FGR4B

  • Sale
  • $549.00
  • $599.00
Tax included.
  • SKU : NB4Plus

    • FLYSKY Noble NB4+ Surface Radio

    This product uses the 2.4GHz Third Generation AFHDS 3 protocol. The Noble NB4+ transmitter and FGr4B receiver constatute a system, compatible with model cars, boats and other models. and it also supports the USB simulator function (Default enabled).

    System Features

    AFHDS 3 (third-generation automatic frequency hopping digital system) is a newly developed digital wireless system. It is compatible with single antenna bidirectional real-time data packet transmission and data stream transmission. With the advantages that come with the WS2A wireless system and the new 2.4GHz chip, the system can dynamically set: number of channels, channel resolution, range, anti-interference requirements and latency to meet the needs of different users.

    Single Antenna
    Bidirectional
    Real-time Data
    Transmission    		 The receiver can receive data from the transmitter and the transmitter can receive data from the receiver, this includes data from sensors, such as temperature and speed and support the i-BUS. This gives more control over the aircraft and constant information on its current status.
    Uncorrected Data
    Transmission    		 The independent uncorrected data transmission module is built into RF system; it can send many different types of data including flight control data.
    Intelligent RF
    configuration    		 Depending on hardware, certification, the amount of data to be transmitted, anti-interference, latency and distance requirements, the system intelligently adapts the corresponding RF configuration to meet the requirements of the user.
    Multi-channel
    Frequency Hopping    		 This systems bandwidth ranges from 2.402GHz to 2.480GHz. This band is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.
    Unique ID
    Recognition System    		 Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
    Low Power
    Consumption    		 The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery

    AFHDS 3 (third-generation automatic frequency hopping digital system) is a newly developed digital wireless system. It is compatible with single antenna bidirectional real-time data packet transmission and data stream transmission. With the advantages that come with the WS2A wireless system and the new 2.4GHz chip, the system can dynamically set: number of channels, channel resolution, range, anti-interference requirements and latency to meet the needs of different users.

    Single Antenna
    Bidirectional
    Real-time Data
    Transmission    		 The receiver can receive data from the transmitter and the transmitter can receive data from the receiver, this includes data from sensors, such as temperature and speed and support the i-BUS. This gives more control over the aircraft and constant information on its current status.
    Uncorrected Data
    Transmission    		 The independent uncorrected data transmission module is built into RF system; it can send many different types of data including flight control data.
    Intelligent RF
    configuration    		 Depending on hardware, certification, the amount of data to be transmitted, anti-interference, latency and distance requirements, the system intelligently adapts the corresponding RF configuration to meet the requirements of the user.
    Multi-channel
    Frequency Hopping    		 This systems bandwidth ranges from 2.402GHz to 2.480GHz. This band is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.
    Unique ID
    Recognition System    		 Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
    Low Power
    Consumption    		 The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery



    The Noble NB4+ has 2 batteries, one located in the handle and one in the removeable base.
    To attach the base:
    1. Line up the base so that the transmitter handle has a slight over hang on the back.
    2. Carefully insert the base contacts into the hole in the bottom of the handle.
    3. Hold the handle firmly and pull the battery backwards. When it is secure you should hear a click.
